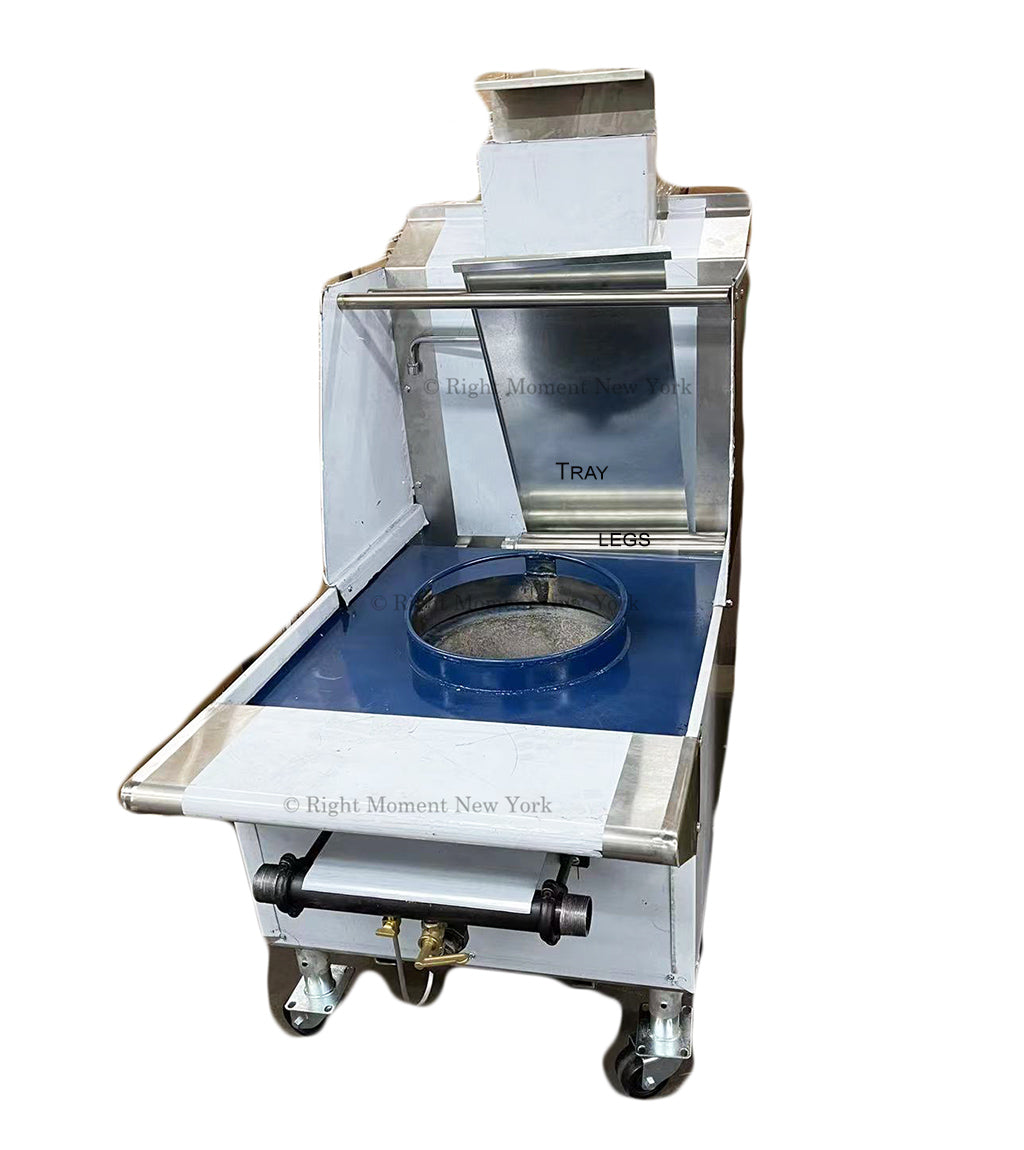

13" Chamber Single Burner Commercial Restaurant Gas Chinese Stove Wok Range - 128,000 BTU, NSF Listed

Single Burner 13" Cement Chamber Commercial Restaurant Gas Chinese Stove Wok Range - Total BTU 128,000, NSF Listed.

This commercial custom-made item cannot be cancelled or returned.  Contact us if you have any questions or concerns!

Product Features:

• Overall dimensions: 24"W (13" chamber) x 45"D x 64"H

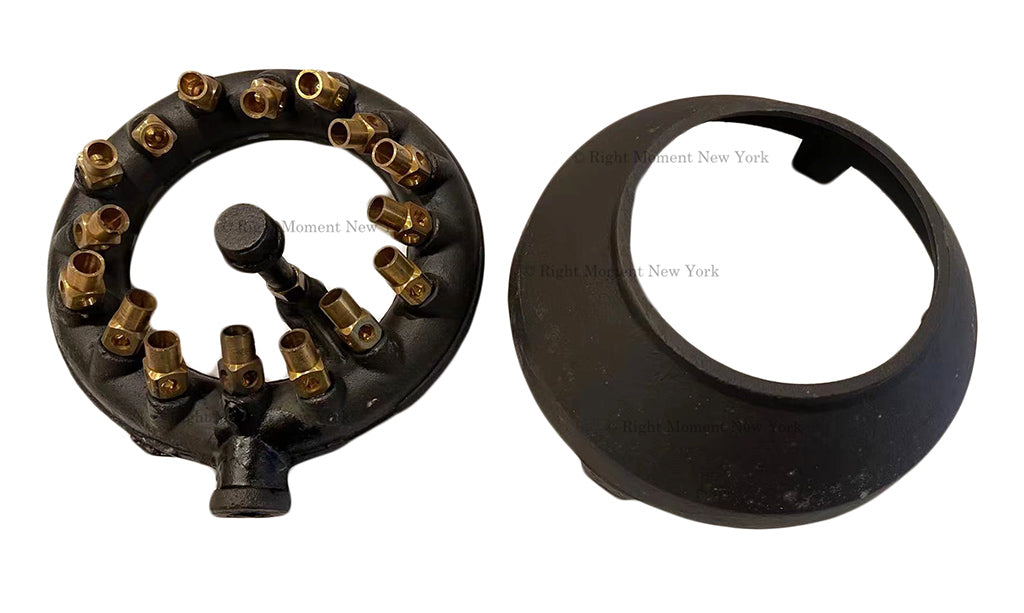

• Equipped with a 16-tip volcano jet burner with lid.
• A standard waste basket located in the drain bar.
• A water-cooling pipe included.  Your contractor needs to install it in the front (top) of this unit to keep the stove clean and help reduce surface temperature. Please turn it on (red knob near the gas valve) before cooking.

• Iron stove top extended to front and two sides with forming technology.
• Cement chambers are manufactured with a high resistance towards fire.

• Removable wok back splash and side splash are assembled with screws which allows getting into narrow entrance and makes maintenance easier.
• Wok swing faucet automatically turns on when spout is swung over wok.
• Stainless steel removable drip tray under each burner, for grease, and waste.

Notes:

1. The incoming gas line pressure should be 6" W.C. for natural gas.
2. Gas inlet size: 1-1/2".
3. Drain connection required: 1-1/4" NPT connection positioned on the back.
4. Water connection required: 1/2" NPT water connection positioned on the back.
